Multi-Flue Chimney Caps: One Shared Lid or One Per Flue?
The first sign most homeowners notice isn't rain at all. It's a faint tapping behind the damper during a storm, or a ring of gray water sitting in the firebox the next morning with no obvious source, because the roof is dry and the gutters are clear. The chimney itself is the leak. What that one morning shows is only the first frame of a much longer sequence, though: an open flue doesn't do the same damage on night one that it does after three winters of the same neglect, and which stage you're looking at changes what actually needs fixing.
What follows is the order in which damage actually occurs, from the top of the stack down to the framing behind the wall, and from the first storm to years of neglect. This is about a flue with no cap at all; a cap that's present but too small or the wrong shape for what it's covering is a separate problem with its own failure pattern.
| Factor | Older/historic masonry | Modern masonry |
|---|---|---|
| Mortar binder | Lime-based, low or no Portland cement | Portland-cement-based, harder curing |
| Mortar flexibility | Softer, some self-healing of hairline cracks | Rigid once cured, cracks stay cracked |
| Brick type | Handmade or soft-mud, lower fire temperature | Extruded, wire-cut, higher fire temperature |
| Brick porosity | More absorbent, prone to spalling | Denser, less water uptake |
| Typical liner status | Often unlined, undersized, or original clay tile | Liner sized and installed to current standards |
| Repair priority | Match mortar chemistry, not just color | Standard modern mortar mixes generally compatible |
| Common failure pattern | Brick face spalling; joint self-healing can mask real deterioration | Joint cracking tends to precede brick damage |
Older chimneys were often built on shallower footings than current standards call for, and after decades of ground movement and the chimney's own weight, some settling is common: a slight lean, a visible gap where the chimney meets the roofline, or a stair-step crack pattern following the mortar joints diagonally. A small, stable lean or an old, dormant crack isn't automatically an emergency, but telling "old and stable" from "active and worsening" benefits from a hands-on inspection rather than a guess from the ground.
A technician can often get a first read on mortar type without lab testing. Dragging a metal key or nail across a joint that leaves a visible scratch and a little powder points toward a softer, lime-rich mix, while a joint that resists scratching and holds a sharp edge points toward a harder, Portland-heavy mix. This test doesn't replace a proper inspection or lab analysis of the actual composition, but it's a useful first check before assuming a chimney can be treated like standard modern construction.

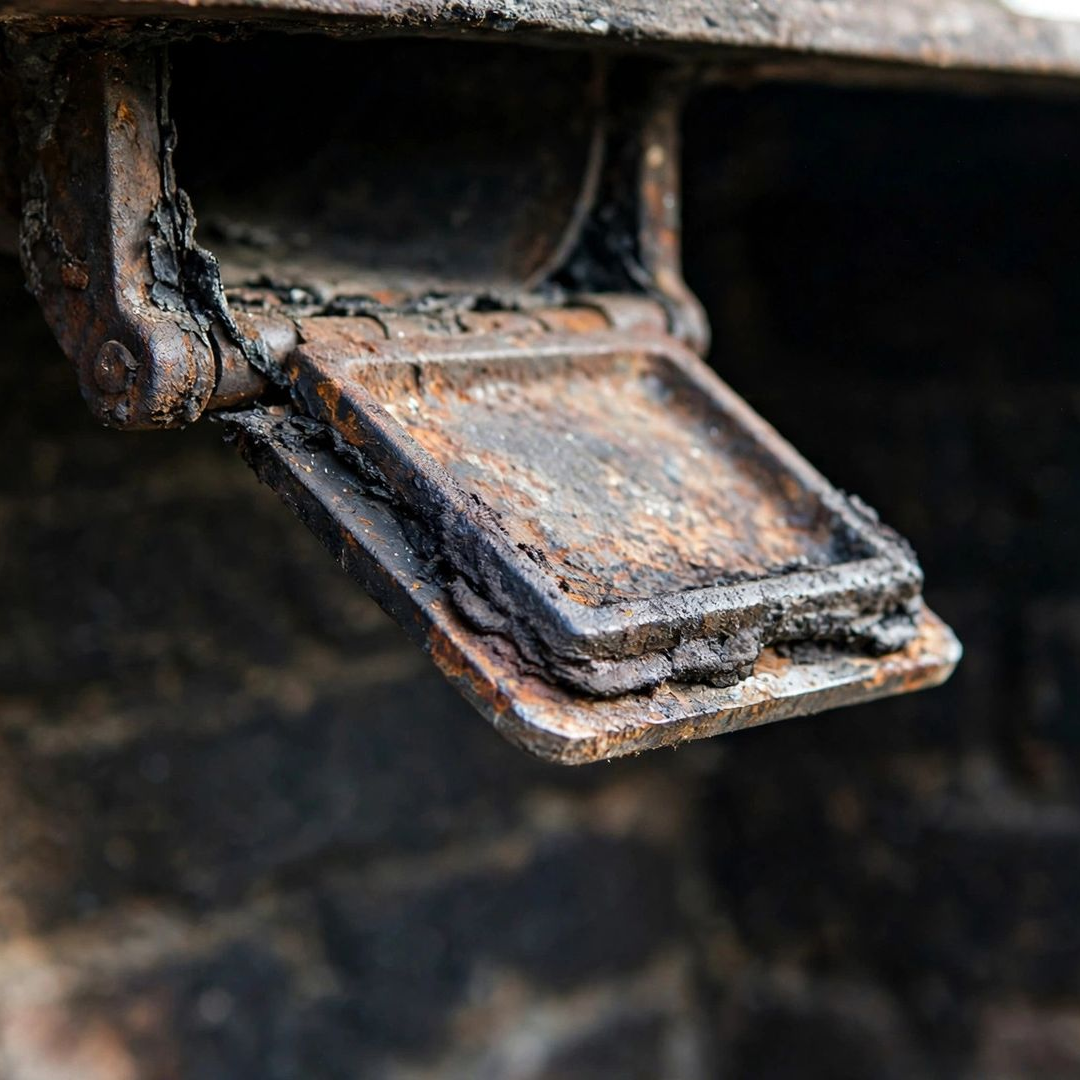

The damper is the movable plate that opens and closes the path between the firebox and the flue above it. Traditional dampers are a hinged metal flap mounted at the throat, right in front of the smoke shelf at essentially the same level; newer systems often use a top-mount damper instead, a sealing plate at the very top of the flue operated by a cable or lever from the firebox. The damper's job: it closes off the flue when there's no fire burning, so conditioned indoor air doesn't pour straight up the chimney, and it opens fully to let smoke and gases draft out when you do have a fire going. A damper that won't seat properly, whether warped, rusted, or coated in old creosote, wastes energy and can also affect how well a fireplace drafts once lit.
Hearth Extension
When a Post-Renovation Inspection Is (and Isn't) Warranted
The hearth extension, the noncombustible floor pad in front of the firebox opening, catches stray ash, bark, splinters, and the occasional ember that pops clear of the fire. A quick vacuum with a shop vac or a canister vacuum's brush attachment once a week during active burning keeps this debris from working into carpet fibers or wood flooring at the hearth's edge, and it's your chance to glance for embers that landed outside the firebox and cooled without your noticing. Check that logs, kindling, and any decorative items on the mantel or nearby furniture haven't crept closer to the opening than the several feet of clearance most fireplace manufacturers and fire-safety groups recommend as a baseline. This is also a good moment to make sure nothing- a rug corner, a stack of kindling, a pet bed- has migrated into that clearance zone since the last time you checked.
Waterproofing is a preventive and protective treatment for masonry that's fundamentally in good shape but exposed to the elements, not a repair for masonry that's already showing damage. If the brick or mortar has visible deterioration such as spalling, crumbling joints, or a cracked crown, that damage needs to be addressed on its own terms before waterproofing goes on top of it, since sealing over a compromised surface just locks moisture problems in rather than out. Once repairs are handled, waterproofing is a reasonable next step for extending the life of the masonry and reducing how much water it absorbs going forward, particularly on a chimney with no roof overhang or nearby shelter shielding it from direct weather. It's also a sensible addition anytime a chimney gets rebuilt or has significant tuckpointing done, since new mortar is at its most porous in the first year or two.
Reading Your Results
| Red Flag | What a Legitimate Technician Does Instead |
|---|---|
| Rock-bottom advertised price, then "mandatory" add-ons once the tech is on-site | States the base price and what could change it before the appointment; add-ons are optional and explained, not sprung |
| Claims of imminent fire or CO danger with no proof | Shows photos or video tied to the specific finding, or explains it in plain language you can follow |
| Vague or evasive about certification and training | Names the certifying body (e.g., CSIA), can describe what the credential covers |
| No mention of insurance, no findable business address | Carries liability coverage and can provide proof if asked; operates from a verifiable business |
| Refuses to show camera footage or "you wouldn't understand it" | Walks you through findings, translating technical detail into plain terms |
| "This price is only good if you sign today" | Gives you time to think it over; urgency is reserved for genuine active hazards, not routine repairs |
| Unmarked vehicle, cash-only, no paperwork | Provides a written estimate or service report you can keep |
Checking a company's standing takes a few minutes and heads off most of the above. Look up online reviews for specific complaints, not just the star rating. Confirm the business has a physical address you can find, not just a phone number. Ask about certification and insurance before scheduling, not after a technician is in your driveway. If your state or municipality licenses chimney sweeps, that license number should be something the company provides without hesitation, and a short phone call asking directly usually tells you a lot from how readily it gets answered.
Set the red flags aside for a moment, because it helps to know what you're aiming for, not just what you're avoiding. A technician doing this job the right way walks you through the visit almost like a translator: here's what I found, here's what it means, here's what happens if it's left alone versus addressed. If a camera scan turns something up, you see the footage, or at minimum get a clear description tied to a specific location in the flue, not a vague reference to "damage up there." Recommendations get written down, often in a service report you keep, so you have a record to compare against next year rather than a verbal claim you have to just remember and trust.
Pricing is explained before work starts, and changes to that price come with a reason you can follow, not a mandatory bundle sprung mid-visit. And critically, nothing about the timeline pressures you into deciding on the spot. A technician confident in the finding doesn't need you to decide before he's back in the truck.
| Symptom | Likely Cause | What to Do |
|---|---|---|
| White, chalky staining on the brick | Efflorescence: water moving through porous masonry and leaving mineral deposits behind as it evaporates | Leak detection to find the entry point, then a breathable waterproofing treatment |
| Rust stains or flaking metal around the damper or firebox | Water reaching the damper assembly, firebox, or metal chimney components | Damper inspection and repair, plus a check of the cap and crown for openings |
| Crumbling, flaking, or pitted brick faces (spalling) | Repeated saturation, worsened by freeze-thaw cycling, pushing the brick's face apart from the inside | Masonry repair, or a partial to full rebuild in advanced cases |
| Cracks or erosion in the chimney crown | The concrete or mortar wash at the top of the stack has failed, letting rain track straight into the flue | Crown repair or replacement, paired with a properly fitted cap |
| Water stains on the ceiling or wall near the fireplace | Flashing where the chimney meets the roofline has separated, corroded, or was installed poorly | Leak detection to confirm the source, then flashing repair |
| A musty, damp smell from the fireplace, especially after rain | Trapped moisture in the flue liner, firebox, or smoke chamber that never fully dries out | A Level 2 inspection of the interior, plus waterproofing if the masonry is porous |
What Comes After the Inspection
Load the Firebox Right-Sized
If more than one of these looks off at the same time, a technician typically checks all three anyway, since they sit inches apart around a single roof penetration and a problem at one often points to strain on another.
WARNING: Climbing onto a steep or wet roof to inspect these parts up close carries a real risk of falling. Identify what you can see from the ground, and leave close-range inspection to a professional. (336) 604-6711.
| Fuel Type | Core Upkeep Tasks | Typical Frequency | Who Handles It |
|---|---|---|---|
| Wood-burning | Creosote/soot sweep, flue liner inspection, cap and crown check, damper seal, ash removal | Sweep and inspection at least annually (NFPA 211 baseline); ash removal as needed between burns | Certified sweep for the flue/liner/cap; ash removal is a homeowner task |
| Gas fireplace/insert | Pilot or ignition system check, burner and orifice cleaning, vent inspection, glass gasket check, log placement | Annual professional inspection; light dusting of the surround as needed | Professional for burner, venting, and ignition components; surface dusting is a homeowner task |
| Electric | Dust heat exchanger and fan intake, wipe glass front, replace LED/bulb occasionally | Dusting every few weeks during regular use; bulb/LED replacement over a period of years | Homeowner task for routine upkeep; component failures go to appliance/electrical repair, not chimney service |
| Fuel Type | Core Upkeep Tasks | Typical Frequency | Who Handles It |
|---|---|---|---|
| Wood-burning | Creosote/soot sweep, flue liner inspection, cap and crown check, damper seal, ash removal | Sweep and inspection at least annually (NFPA 211 baseline); ash removal as needed between burns | Certified sweep for the flue/liner/cap; ash removal is a homeowner task |
| Gas fireplace/insert | Pilot or ignition system check, burner and orifice cleaning, vent inspection, glass gasket check, log placement | Annual professional inspection; light dusting of the surround as needed | Professional for burner, venting, and ignition components; surface dusting is a homeowner task |
| Electric | Dust heat exchanger and fan intake, wipe glass front, replace LED/bulb occasionally | Dusting every few weeks during regular use; bulb/LED replacement over a period of years | Homeowner task for routine upkeep; component failures go to appliance/electrical repair, not chimney service |
If they won't come back or can't explain the fit, a second CSIA-certified sweep can inspect cap and flue together and say which is at fault.
The moment most homeowners find out their chimney carries more than one flue is the moment somebody measures it. A technician on the roof with a tape, or a camera run up from inside, comes back with a count nobody was expecting: two flue openings on that crown, sometimes three.
A chimney built to vent a wood-burning fireplace and a gas furnace often carries two separate flues rising from the same masonry structure, each with its own clay tile or metal liner, terminating a few feet apart on the same crown. Add a boiler tied into a shared chase, or a wood-stove insert installed years after the house was built, and one stack can run three flues at once.
That gap between what a chimney is assumed to be and what is actually sitting on top of it is where cap decisions go wrong: a stock cap ordered to fit "the chimney" assumes one flue, and a multi-flue stack needs a different answer.
This article walks through why a single chimney ends up carrying more than one flue, what changes when it does, and how a technician decides between fitting each flue with its own cap or fabricating one cover that spans the whole crown.
Why One Chimney Often Carries More Than One Flue
A masonry chimney isn't limited to one appliance. Anything that burns fuel and needs to vent combustion byproducts outside the house requires its own dedicated path up through the chimney, and builders have long grouped multiple of those paths into a single exterior structure rather than framing a separate chase for each.
The common pairing: A wood-burning fireplace flue running beside a furnace flue, both terminating on the same crown. The fireplace vents on its own clay tile liner sized to the firebox; the furnace or boiler vents on a smaller flue sized to that appliance's output. They share brick, they share a crown, and they read as one chimney doing one job.
Other combinations show up depending on the house's age and what's been added since. A wood-stove insert put into what used to be a decorative fireplace opening is normally run on its own liner beside the original flue tile rather than sharing it, which quietly adds a flue to the stack without changing anything about the chimney's outward shape. In older or larger homes, it isn't unusual to find two fireplace flues on separate floors, both terminating in the same exterior stack.
None of this is visible without measuring. A two-flue or three-flue stack is one rectangle of brick and one crown, the same as a one-flue stack, until somebody gets a tape on it.
TIP: When you call for an inspection, mention how many appliances vent into the chimney: a fireplace, a furnace, a wood stove. That count changes whether one cap or a full multi-flue assessment is what's needed.
Two Ways to Cover a Multi-Flue Stack
Once a technician confirms more than one flue is up there, the cap decision splits into two real options. Both are established, standard approaches; which one fits depends on the flues' spacing, their condition, and the crown they sit on.
| Comparison | Individual Caps, One per Flue | One Custom Multi-Flue Lid |
|---|---|---|
| How it's sized | Each cap is fabricated or selected to that flue tile's own outer dimension. | One cover is fabricated to the crown's full footprint, spanning every flue opening at once. |
| Servicing one flue | A damaged or corroded cap on one flue can be swapped without touching the others. | The cover is typically a single welded piece; damage to one section usually means refabricating the whole lid. |
| Uneven flue heights | Each cap sits at its own flue's natural height; nothing to reconcile. | Standoff legs or a stepped frame must be built to clear the tallest flue while still sitting close to the shortest one. |
| Exhaust separation | Each flue vents into open air, fully separated from its neighbor. | Needs an internal divider between flue openings so exhaust from one doesn't drift toward another. |
| Adding a flue later | A new cap is ordered to match the new flue. | The existing lid's footprint may not have room; a new cover often has to be fabricated. |
| Look from the ground | Several separate lids across the crown. | One continuous cover, a cleaner roofline. |
Neither option is inherently better, but they don't start from the same place. One cover spanning the crown also shields the crown surface between the flues, which several separate caps leave open to weather. Separate caps give that coverage up in exchange for being sized to each flue on its own and replaceable one at a time. A technician measures the crown and the flue layout before recommending either.
When Flues Sit at Different Heights
Flue tiles on the same crown don't always terminate at the same height. One flue might stand taller than its neighbor because it was built that way originally, because it was re-lined with a stainless liner that extends higher than the old tile did, or because a crown repair around one flue changed how far it now protrudes relative to the others.
For a shared multi-flue lid, that difference has to be built into the fabrication. The frame's standoff legs are cut to different lengths, or the frame itself is stepped, so the cover sits high enough over the tallest flue's opening to let exhaust escape while still sitting close enough over the shortest flue that it doesn't leave a gap on one side. Getting this wrong repeats the same failure a wrong-size single-flue cap produces: too much open space over one flue leaves it under-covered, too little over another chokes its exhaust.
Individual caps sidestep this problem, since each one is set at its own flue's actual height rather than being asked to average across several.
Why a Shared Lid Needs a Divider
A shared cover places two exhaust streams under one roof, and the internal divider built into its frame keeps them apart. What that failure looks like from inside the house, and how a technician tells it apart from an ordinary blocked screen, is covered in this site's article on a fireplace smoking after a new chimney cap install.
WARNING: Every sign in this article is read from the ground, a window, or a photograph. A cap that has already worked loose is the part most likely to shift under a hand, on the least stable footing on the house.

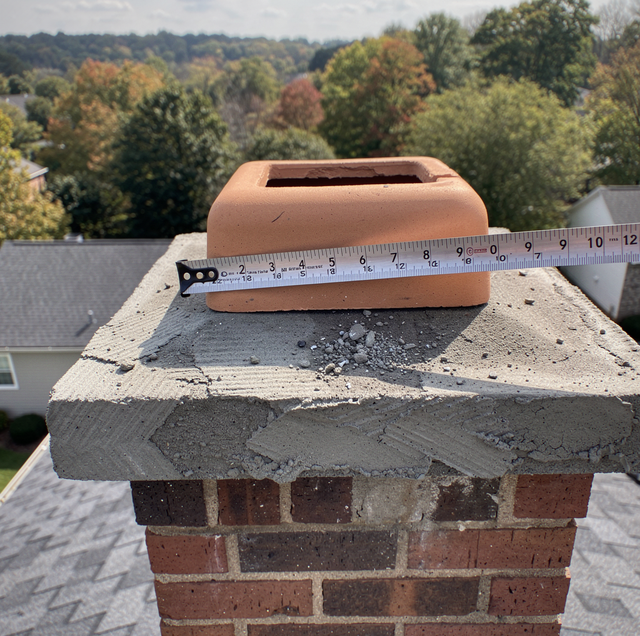

What Gets Measured on Site
None of the decisions above get made from a photo or a phone call. A technician gets on site to measure the crown's full length and width, the outer dimensions and position of each individual flue tile, the height each flue protrudes above the crown, the spacing between flues, and the condition of the masonry into which each fastener would be driven. Part of that walk-through also confirms whether every flue is actually in use. A masonry fireplace that's been closed off, or a furnace that was swapped for a heat pump years ago, can leave an inactive flue still opening onto the same crown.
Once those measurements are in hand, material and design get selected, matched to what the homeowner wants and what the crown can support.
Stock stainless caps are usually available within a few business days; a custom copper cap, a custom stainless cap, or a fabricated multi-flue cover takes longer, since it's built to the exact dimensions measured on site rather than pulled off a shelf. Installation itself is typically a single visit: the cap or cover is set and fastened with manufacturer-specified hardware, high-temperature sealant is used where the design calls for it, and the crew performs a final check before leaving photographs of the finished installation for the homeowner's records.
Frequently Asked Questions
How does a technician decide between individual caps and one shared lid?
Flue count and spacing are only part of it. If the crown's masonry is already cracked or spalling in one area, a technician often avoids a single multi-flue cover, since that concentrates more of the fastener load on a weakened section, and recommends separate, lighter caps anchored to sounder material instead. A crown in good condition with flues close together is a clearer case for one shared lid.
If a shared multi-flue cap gets damaged, does the whole cover need to be replaced?
It depends on how the cover was built, and the usual construction is the harder one. A lid welded as one continuous piece has to come off the crown as a unit for shop repair or replacement, because there is no seam to work at in place. The exception is a cover built with each flue's screen panel bolted to a shared frame, where a single panel can sometimes be swapped on the roof. A technician confirms which construction is on your chimney before deciding the fix.
What happens if a new flue gets added to the stack after a shared lid is already installed?
The cover usually has to be refabricated, and what gets overlooked is what the old one leaves behind. Its anchors were set into the crown at whatever points that footprint required, and a refabricated cover rarely lands on the same ones. Those abandoned holes are open paths into the crown for water unless they're sealed, and patched first if the masonry around one has crumbled. A technician checks the old penetrations as part of setting the replacement rather than after.
What does the divider do when one flue on the stack is out of service?
That's the case where its absence matters most. A dead flue still opens onto the crown, and under a shared lid with no divider it becomes an open cavity sitting beside a flue that is actively venting, with nothing drawing through it to carry anything back out. Exhaust that drifts into it has somewhere to settle. A technician accounts for a dead flue in the divider layout rather than treating it as an opening that needs no separating, and confirms whether it was sealed at the tile or simply abandoned.
Is a chase cover the same thing as a multi-flue cap?
No. A chase cover seals the top of a factory-built chimney chase, while a cap sits on the flue pipe rising through it, making it a different part on a different chimney type from the masonry crown that a multi-flue cap spans. This site's article comparing chimney caps and chase covers carries the full distinction, including which one a prefab chimney needs.
Can a chimney have three flues, or is two the practical limit?
Three flues on one crown is common. A fireplace flue, a furnace flue, and a third added when an appliance went in later can all terminate on the same stack, and a technician sizing that crown normally specifies one custom cover spanning all three rather than three separate caps. What three flues change is the fabrication. A cover that large expands and contracts more over a temperature swing than a small single-flue cap does, so every seam in it has to allow for that movement, not just its outer edge. Flue count on its own isn't what rules out one lid; how much unbroken metal the design ends up carrying is.
What You Now Know to Ask About Your Own Crown
Nobody can hand you a recommendation here because it rests on numbers that don't exist until someone measures them. What you can bring to the conversation is a shorter list of questions than most homeowners arrive with: how many flues actually terminate on my crown, whether any of them is out of service, whether their tops line up or sit at different heights, and if one shared cover is proposed, whether it carries a divider between the openings. Those four answers are what turn a cap order from a guess into a fit.
Schedule an on-site multi-flue cap assessment — a CSIA-certified technician measures your crown, flue count, and flue heights, then recommends individual caps or a custom shared cover. Perfect Chimney Cleaning serves Greensboro, High Point, and Winston-Salem. Call (336) 604-6711.
